5 Best Free DXF to GCode Converter Software For Windows
Here is a list of best free DXF to GCode Converter Software For Windows. Through these software, you can convert designs and models present in DXF files to GCode. This conversion is performed because you cannot directly create a physical design through a CNC machine or 3D printer feeding a DXF file. You need to feed the GCode of a DXF design that you want to physically create to designing or engraving machines. Apart from DXF, you can also convert files of WMF, HPGL, PLT, SVG, etc., formats to GCode. To efficiently perform the conversion, some of these software also let you batch convert DXF files to GCodes at a time.
In some software, you can also view the designs present in a DXF or another supported file. Plus, you can also make changes to input designs through some converters before performing the conversion. To edit a design, these software offer tools like Scale, Drawing, Fillet Corners, Node Edit Mode, Join, Normal Edit Mode, Shapes, etc. A few of these converters also give you the ability to include instructions related to designing machines and designing process to the Gcode. Some of the designing instructions and parameters which you can include in Gcode are Feed Rate Change, G-Code Constants, Step Over, Offset Direction, etc. After that, you can start the conversion process. You can find the complete DXF to GCode conversion process in the description of each software. Go through the list to know more about these software.
My Favorite DXF to GCode Converter Software For Windows:
LazyCam is my favorite software because it lets you edit the designs or models of a DXF file before starting the conversion. Plus, it is quite simple to use and anyone can operate it with ease.
LazyCam is a free DXF to GCode converter software for Windows. This software is specially designed to generate GCode of designs and models present in vector files like DXF, WMF, HPGL, PLT, etc. However, you can also input designs present in common image formats (JPG, BMP, PNG, etc.) and convert them to G-codes through this software. Using it, you can also make some changes to input design by using editing tools like Fillet Corners, Scale, Drawing, Remove Circles, Rotate Drawing, Optimize Drawing, and more. After making changes to the design, you can start the conversion process. Check out the below steps to perform DXF to GCode conversion.
How to convert DXF to GCode using LazyCam:
- Open the interface of this software and click on the Open DXF button to load a DXF file.
- After that, you get an option to choose one of the four available sessions namely MILL, Plasma, Turn, and Foam. You can choose the session according to the CNC machine you are going to use to create the physical design.
- Now, use various available design editing tools to make desired changes to the design before starting the conversion process.
- Next, press the Post Code button to specify the destination location path and some GCode parameters (line number increment, use G41/G42 on leading outputs or not, etc.)
- Lastly, click on the OK button to start the DXF to GCode conversion process.
It is one of the best DXF to GCode Converter through which you can edit designs of a DXF file before converting it to the GCode.
All to G-Code Converter
All to G-Code Converter is a free DXF to GCode converter software for Windows. It is one of the simplest software through which you can quickly generate the GCode of a 2D or 3D model contained in a DXF file. Apart from DXF, you can also use it to convert designs present in PLT and SVG files to GCode. In addition to that, you can also batch convert DXF to GCode as well as batch convert other supported files to Gcode at a time using it.
Before starting the conversion, you can define printing parameters namely number of plotter units per inch and resolution of the spline segment. Besides this, it also gives you options to define the syntax of starting GCode, GCode between objects, and Ending GCode.
How to convert DXF to GCode using All to G-Code Converter:
- Launch this software and drag & drop one or more DXF files to its Open Files field.
- Next, go to Input format options to specify the number of plotters per inch along with the resolution of the spline segment.
- Now, if you want to change the default GCode syntax, then enter the new syntax in Choose your settings fields.
- Lastly, specify the destination location for the output GCode and press the Convert button.
It is a simple and dedicated DXF to GCode converter through which you can quickly convert multiple DXF files into GCode simultaneously.
DXF2GCODE is a free open source DXF to GCode converter software for Windows. As its name implies, this software is primarily used to convert designs of a DXF file to GCode. However, you can also import designs from DDF, PS, and D2G files and generate corresponding G-codes for them. As soon as you import a DXF file, you can view its design on the main interface along with the name of all the entities and layers on the side panel of this software. The side panel also allows you to disable any layer or entity of the design that you don’t want to view.
This software also offers a handy Postprocessor Configuration option that allows you to specify some parameters for CNC, Drag Knife, Lathe, etc., machines. Some of the important parameters which you can specify are Feed Rate Change, G-Code Constants, Rapid Positioning For XY Plane, Linear Feed Move, etc.
How to convert DXF to Gcode using DXF2GCODE:
- Open the interface of this software and go to File > Option to load a DXF file.
- After that, use the Postprocessor Configuration options to specify various instructions which you want to include in the GCode for the Lathe, Milling, and Drag Knife machines.
- Next, go to the Export tab to optimize the path which the designing machine will follow to create the physical design or engraving.
- Lastly, click on the Export Shapes option to perform the DXF to GCode conversion.
This output GCode generated by this software is specially designed for LinuxCNC software that can operate various machines like drive milling machines, lathes, 3d printers, laser cutters, etc.
It is another capable DXF to Gcode converter through which you can create GCode for designs present in a DXF file.
Carbide Create is a free CAD/CAM software through which you can also perform DFX to GCode conversion. It works on Windows and macOS. Through this software, you can create 2D designs and also edit existing designs contained by DXF, SVG, and C2D files. To create and edit designs, you can use its designing tools like Shapes (Circle, Rectangle, Curve, etc.), Text, Resize, Rotate, Move, Node Edit Mode, Join, Normal Edit Mode, etc. Besides this, you can also define various Toolpath parameters (stepover, max depth, max length, angle, offset direction, etc.) following which a CNC or milling machine will engrave a design. Now, to convert DXF to GCode follow the below steps.
How to convert DXF to GCode using Carbide Create:
- Start this software and use the Open option to load a DXF file to this software.
- After that, you can various design editing tools to make necessary changes to the input design, if you want.
- Next, go to the Toolpath section to specify toolpath parameters related to Contour, Texture, and V-Carve.
- Lastly, click on the Save GCode button to start the DFX to GCode conversion.
- Simulation: This is a nice useful feature that shows the simulation of the designing process.
It is a beautifully designed DXF to GCode converter through which you can edit the DXF file design before converting it to the GCode.

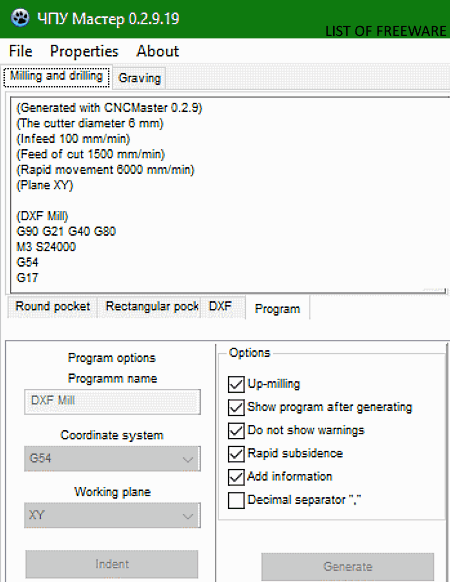

CNC Master is another free open source DXF to GCode converter software for Windows and Linux. Apart from DXF, it does not support designs of any other file format.
Through this software, you can create two types of GCodes for different designing machines namely Milling & drilling and Graving. If you want to convert DXF to GCode for milling & drilling machines, then you will get various fields to adjust milling & drilling parameters such as round pocket, rectangular pocket, annular pocket, oval pocket, cutting a path, marking the holes, and more. To generate GCode for the Graving machine, you have to specify only a few parameters like X-coordinate, Y-coordinate, Angle, Cutting Parameters, Speed (feed of cut), etc. After that, you can start the GCode generation. However, this software only provides the output GCode on its interface that you can copy to clipboard but cannot save in a file.
How to convert DXF to GCode using CNC Master:
- Start this software and go to DXF section to load a DXF file to this software.
- After that, specify important Milling & Drilling and Graving parameters by going to respective tabs.
- Next, click on the Generate button to get the output GCode in the Program field. You can copy the generated GCode to the clipboard.
Note: You need to separately load DXF files in both Milling & Drilling and Graving tabs to get GCodes for both the Milling & Drilling and Graving machines.
It is a good DXF to GCode converter software as it allows you to generate GCodes for two different types of physical design engraving machines.
