8 Best Free DXF to SVG Converter Software for Windows

Here is a list of best free DXF to SVG converter software for Windows. Using this software, you can convert AutoCAD DXF files (Drawing Exchange Format) to SVG format (Scalable Vector Graphics). In some of these software, you can also modify DXF file before you convert it to SVG format. To edit DXF file, these software provide drawing tools (line, ellipse, polyline, arc, etc.), move, rotate, pan, scale, extrude, material editor, etc. All of these software are good DXF viewers too. So, you get options like zoom, pan, rotate, different view modes, etc., to view and analyze DXF files.

Besides SVG, most of these software let you convert DXF files to other formats as well. These formats include DWG, PDF, PNG, JPG, GIF, TIFF, BMP, etc.

My Favorite DXF to SVG Converter Software for Windows:

pCon.planner is a good DXF to SVG converter software as it contains various tools to view and edit DXF files before conversion. Also, it supports a lot of output file formats to convert DXF files.

If you’re a LibreOffice user, you can use its LibreOffice Draw application to convert DXF file to SVG format.

You may also like some best free DXF Editor Software, DXF Viewer Software, and CAD Software for Windows.

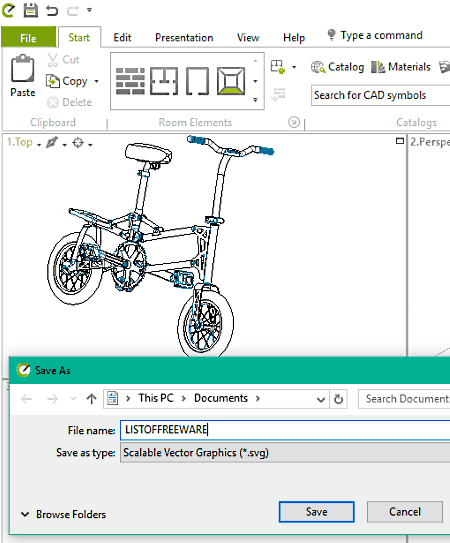

pCon.planner



pCon.planner is a free space planning software for Windows. Using it, you can also convert DXF to SVG file. To do so, you need to open a DXF file and go to File > Export option. From here, select Vector Image option and choose SVG as output file format. You will be able to save DXF file in SVG format. While saving SVG image, you can setup some configurations like line width, line color, output (wireframe or hidden line), etc.

Other than SVG, you can convert DXF to various other vector and scalar images like EMF, DWG, JPG, TIF, EPX, etc. You can also convert DXF model to formats like 3DS, DAE, FBX, OBJ, etc.

Before conversion, it also lets you customize DXF model using tools like polyline, arc, rectangle, text, picture, layer filters, fill color, transform, extrude, hatch, and many more. It contains Dimensioning and Material Editor tools too. Besides all these features, it is a good viewer too which lets you view and analyze DXF, DWG, FBX, 3DS, DAE, OBJ, etc.

Overall, this is one of the best software for converting DXF to SVG.

Home Page      Download Page

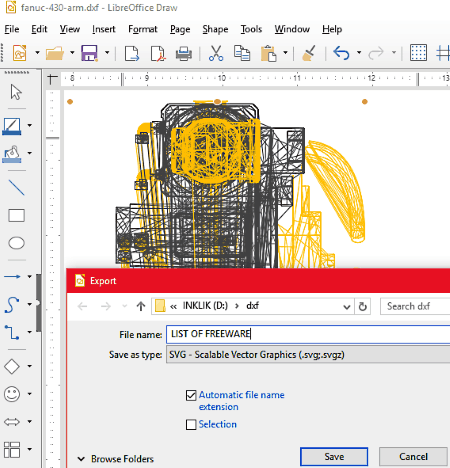

LibreOffice



LibreOffice is a free open source office suite for Windows, Mac, and Linux. Using its LibreOffice Draw application, you can view DXF files as well as convert DXF to SVG. To do so, it provides an Export option. Other than DXF to SVG, it can be used to convert DXF to PDF, PNG, JPG, BMP, TIFF, ICO, etc.

As it is a drawing application, you can also modify DXF designs before conversion. To edit DXF file, you can use tools like insert line, line color, curve, insert basic shapes, symbols, callouts, flowchart, media, align, etc.

LibreOffice provides a set of utilities to create documents, presentations, spreadsheets, etc. To know more about its features, check this article.

Home Page      Download Page

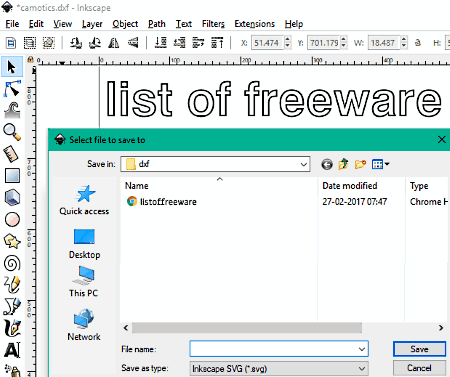

Inkscape



Inkscape is quite a popular drawing software and vector graphics editor for Windows, Linux, and Mac. You can also convert DXF to SVG using this software. It lets you open a DXF file, edit it, and then convert it to SVG format. It supports different kinds of SVG files to convert DXF file, including Inkscape SVG, Plain SVG, Optimized SVG, Compressed Inkscape SVG, Compressed Plain SVG, etc. Apart from SVG, it supports various other export formats like PDF, PNG, PS, EPS, EMF, WMF, HTML, etc. For conversion purpose, use its Save As feature from the File menu.

To edit DXF file before converting it to SVG, you get tools like text, calligraphic, straight lines, rectangle, spirals, sculpting, 3D boxes, etc. It provides layer feature, path options, various filters, etc., to further modify DXF model. To know more about its drawing and editing features, check here.

Note: While converting DXF to SVG, make sure the DXF model is aligned within the canvas. If not, select the entire model and then use Edit > Resize Page to Selection option.

Home Page      Download Page

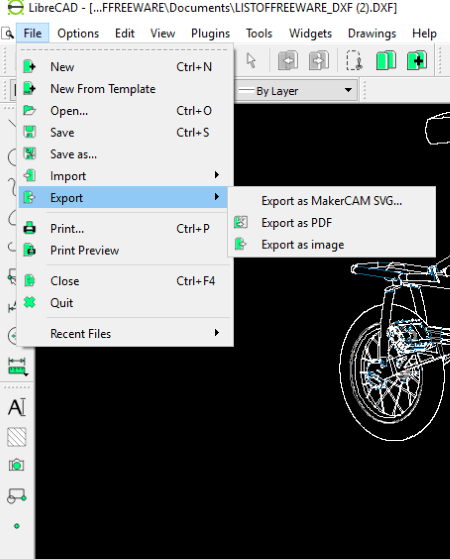

LibreCAD



LibreCAD is yet another free DXF to SVG converter on this list. Using it, you can view DXF files as well as convert DXF to SVG. To do so, it provides an Export as MakerCAM SVG option. While exporting DXF to SVG file, you can set up options like export invisible layers, export visible construction layers, convert blocks to safe inline SVG content, etc. You can also convert DXF to generic SVG by using File > Export > ‘Export as image’ option. Plus, it supports a lot more formats to convert DXF such as PDF, PNG, JPG, BMP, TIFF, ICO, etc.

As it is a free CAD application, you also get to modify DXF designs before conversion to PDF. To edit DXF file, you can use tools like lines, circle, spline, ellipse arc, polyline, trim segments, move, rotate, scale, mirror, divide, stretch, etc.

Home Page      Download Page

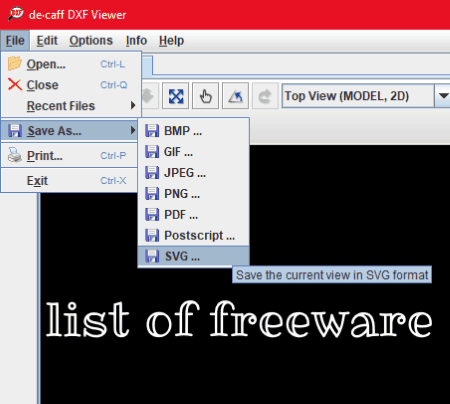

DXF Viewer



DXF Viewer, as the name implies, is a free software to view DXF files. You can also convert DXF file to other formats using it. These formats include SVG as well as BMP, GIF, JPEG, PNG, PDF, and PostScript files. You can open a DXF file and then convert it to SVG using its File > Save As > SVG option. As simple as that.

It is a nice viewing application for DXF files and also for SHX files. You can view different sides of a DXF model, pan the model, zoom in/out, rotate the model, get information about DXF entities, etc. It also lets you view statistics of the DXF model.

Home Page      Download Page

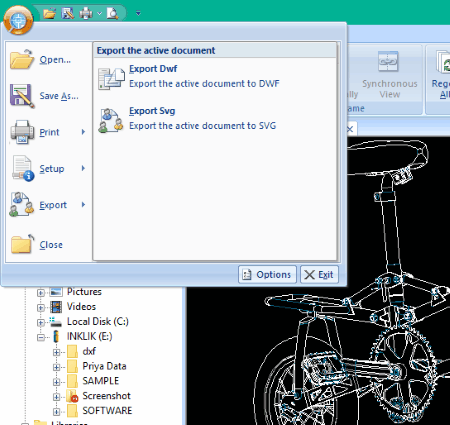

DwgSee Plus (VeryDwgViewer)



DwgSee Plus (VeryDwgViewer) is a DWG and DXF file viewer software for Windows. It can also be used to convert DXF to SVG. You can use its Export feature to do so. Apart from SVG, you can convert DXF to DWF and also, print the model.

It is a nice DXF file viewer. You get all standard viewing tools in it such as zoom, pan, fullscreen mode, etc.

Home Page      Download Page

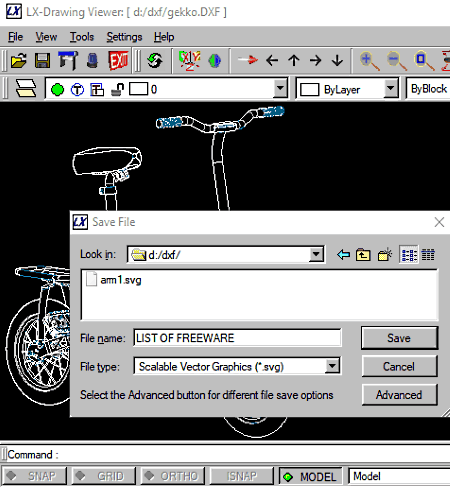

LX-Viewer



LX-Viewer is a DWG and DXF file viewer for Windows. You can also convert DXF to SVG using it. It provides a Save As feature which can be used for conversion. Apart from SVG, you can also convert DXF to DWG, BMP, and PNG.

As it is basically a viewer, you get a lot of tools to view and analyze DWG and DXF files. For example, pan, zoom, plan view, layers option, etc.

Home Page      Download Page

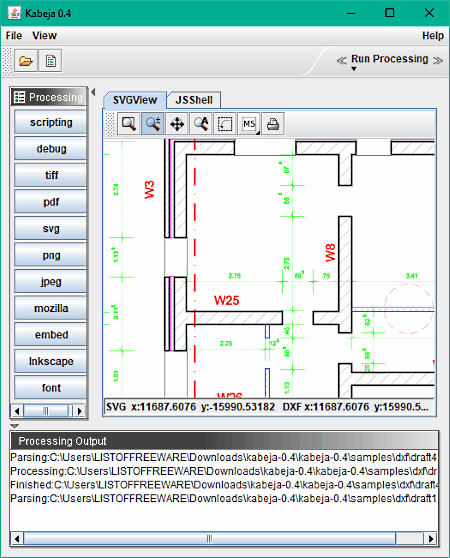

Kabeja



Kabeja is a portable DXF to SVG converter software for Windows. It lets you convert DXF to SVG and many other formats like TIFF, PDF, PNG, JPEG, etc. Other than generic SVG file, you can also convert DXF to a Mozilla compatible SVG file. Also, you can generate an Inkscape SVG file from a DXF file.

It provides an SVGView tab where you can view DXF models using tools like zoom in/out, pan, rotate, etc.

Home Page      Download Page
