5 Best Free Network Mapping Software For Windows

Here is a list of best free network mapping software for Windows. These software basically scan your network for connected devices like computer, printers, switches, routers, etc. and then display the network map to represent physical connectivity between devices. These network mapper software discover devices within the specified IP address range using Ping, Traceroute, etc. After scanning the network, a graphical network map with nodes and connecting lines is displayed. You can view information of connected devices such as name, type, connection type, IP address, MAC address, Status, etc.

In some of these, you can customize network map too. You can change device shape, image, or color scheme and add a new device, insert new connecting line, text, cloud, etc. The network map can be saved as a graphics file or can be directly printed in some of these.

Many of these are network monitoring software which let you monitor and control devices in a network. For example, test ISP connection speed, manage WiFi networks, manage router settings, etc.

My Favorite Free Network Mapping Software For Windows

Nmap is my favorite free network mapper software because it provides detailed network scan results which include network map as well host details, services (HTTP, IMAP, MySQL, POP, SMTP,  SSH, SSL, etc.), etc. It also lets you export network map as PNG, PDF, PostScript, or SVG file. NETGEAR genie is also good as it provides auto-discover option to scan devices.

You may also like to checkout lists of best free Network IP Scanner Software, SNMP Manager Software, and Network Time Synchronizers for Windows.

Nmap



Nmap is quite a popular free open source network mapping software for Windows. It is used for various tasks like network discovery, security auditing, network inventory, monitoring hosts, etc. It is basically a command line utility, but it provides a GUI too called Zenmap. Using it, you can scan devices connected in a network and view networks map. Let’s see how you can map and study physical connectivity of your networks.

How to map your network using this open source network mapping software

To discover devices within your network, you can perform network scanning like Intense Scan, Intense Scan Plus UDP, Quick Scan, Quick Traceroute, Ping Scan, Regular Scan, Slow Comprehensive Scan, etc. You need to add IP address range in the Target field to start scanning (e.g. 192.168.1.0-255). If you are familiar with Nmap commands, you can directly run it from the Command box too. As you start the scan, the real-time progress of the scanning process is displayed. The scan results are displayed with respect to the type of scan you performed.

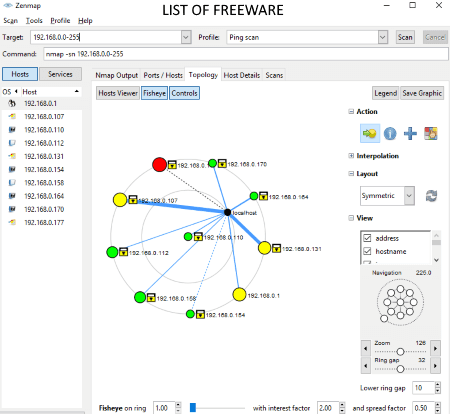

To view network infrastructure, move to Topology tab where you will be able to view network map. You can view topology legend information to understand networks representations, like host icons, connecting lines, etc. It lets you view networks map in a Fisheye mode and tweak various control options like Change Focus, Show Information, Group Children, Fill Region, Interpolation, Layout, View, etc. You can save network map as a graphics file including PNG, PDF, PostScript, and SVG. A dedicated Host Viewer is provided to view information related to discovered hosts. These information include IP Address, Operating System info (used ports, class, etc.), TCP Sequences, Services, Traceroute, etc.

Nmap is a feature rich network discovery and network mapping software. Some other features of this freeware include:

  • You can view total hosts discovered in the left panel. It also displays services (HTTP, IMAP, MySQL, POP, SMTP,  SSH, SSL, etc.) being used with hostname, port, protocol, state, and version.
  • It lets you view host details like state, open ports, filtered ports, scanned ports, MAC address, last boot, etc.
  • Command information like start and end time, hosts scanned, hosts down, hosts up, verbosity time, debug level, etc. can be viewed.
  • You can compare the results of any two scans performed previously.
  • It lets you search for specific scan results with keywords, date, port, profile name, etc.
  • If you want to save a particular scan, you can do that too, in Nmap XML format.
Home Page      Download Page

NETGEAR genie

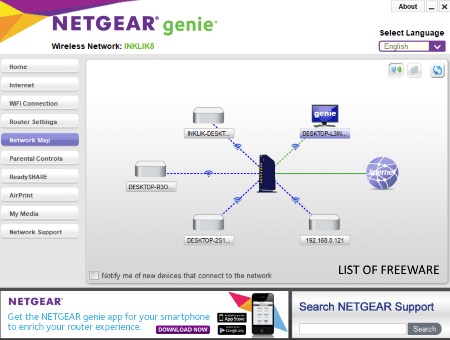

NETGEAR genie is a free software to connect, monitor, and control your home network. You can also use it as a network mapping software. It provides a separate module to show you network map of all connected devices. It performs automatic scanning to detect connected devices on a network. And, as the scanning goes on, all the detected devices are mapped in real time. You can view information related to a device by clicking on it, such as name, type, connection type, IP address, MAC address, status, etc. It lets you modify some device information including name, type, and connection type. There is an option to turn on notification whenever a new device is detected in your network.

Some other key features of this software include test ISP connection speed, manage WiFi networks, manage router settings, etc.

Home Page      Download Page

Net-Probe



Net-Probe is another one of network mapping software in this list. It provides a free version which works for maximum 8 devices. So, using its free version, you can scan and map up to 8 devices.

How to map your network using Net-Probe

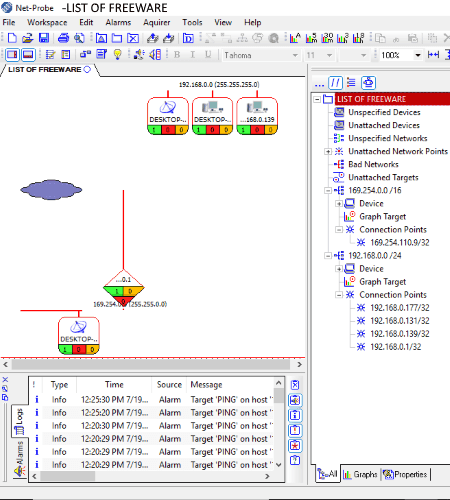

  • Go to Workspace menu and click on New Workspace Wizard option. To perform scanning of networked devices, you need to enter IP address range. It scans networked devices using Ping and Traceroute. The scan results with networks & hosts, hops, SNMP community, SNMP response, Perf response, MAC address, etc. are displayed in real time.
  • As the scanning ends, the network map is displayed on the interface. You can view discovered devices and related information in the right panel. There, you can also view Connection Points, Unspecified Devices, Unattached Devices, Bad Networks, Unattached Network Points, etc. You can view properties of each device by selecting it, such as type, name, IP address, etc. In the Graphs tab, you can view node’s Ok Uptime %, Critical Uptime %, and Warning Uptime %.
  • It not only displays the network map, but it also lets you customize it by adding a new device, new connecting line, text, cloud, etc. and by customizing device properties like color schemes, shape, picture, etc.
  • You can directly print the network map.
  • It also lets you set graph refresh rate.

Net-Probe is a nice network monitoring software. It provides various useful features like Log Viewer, Aquirer/Target List, Alarm Messages, Failure Action Manager, Host Shortcut Editor, etc.

Home Page      Download Page

Spiceworks Desktop



Spiceworks Desktop is another free network mapping software for Windows. You need to register an account in order to download this software and also, to use it. It works in your default browser.

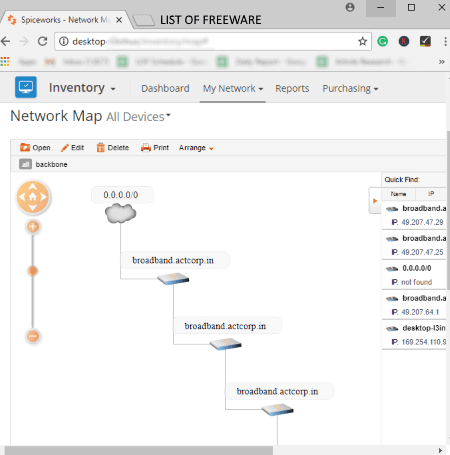

After launching this software, click on Discover & Monitor My Devices option. You can scan devices within an IP address range. After scanning devices, it displays them in a dedicated section with IP address, OS, model, and device type. Now, from its My Network menu, you can open Network Map. You can choose network map of all devices or backbone to be displayed. The basic information of nodes i.e. network devices is also shown. You can arrange the map in radial shape, hierarchal layout, or tree layout. You can directly print network map.

Spiceworks provides a dedicated SNMP Manager which is used to monitor networking devices. To know more about it, you can check here > Spiceworks Network Monitor.

Home Page      Download Page

MyNet Toolset

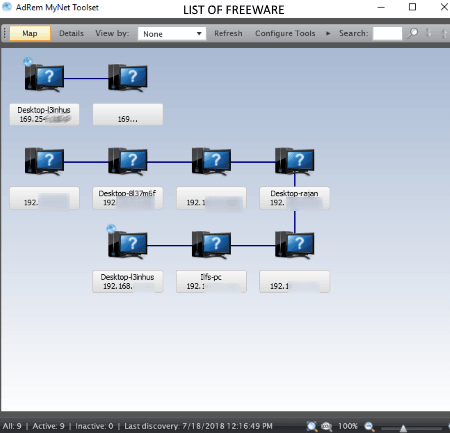

MyNet Toolset is a simple network mapping software for Windows. It basically discovers devices in a local network and shows them as a network map. You can specify a range of IP addresses to scan and discover nodes in a network. Apart from networks map, you can view details of discovered devices including type, name, IP address, DNS name, MAC address, Location, and device info. You can view network map by Node Type, Status (Active or Inactive), or Location. If you wish, you can remove inactive nodes from the map.

It provides a Configure Tools option to manage and add tools like Ping, Path Ping, Traceroute, FTP, etc. It also lets you manage SNMP Profiles.

Home Page      Download Page
