6 Project Management Software With Gantt Chart For Windows

Here is a list of best free project management software with Gantt chart for Windows. Through these software, you can create projects and show their activities against time. Plus, they also offer a great way of scheduling various projects and tasks that anyone can visualize over the Gantt chart. In these software, you get three main entities namely Tasks, Resources, and Gantt Charts. After creating a project, you need to add resources that a project might need like machines, teams, etc. In addition to that, you also need to specify the availability of resources. After that, you can add tasks to a project by specifying the project name, project timing (starting and ending), and needed resources. According to the added tasks and resources, these software generate a Gantt chart that you can use to visualize and track timings of projects, current projects, etc.

The process of creating projects and adding tasks is quite simple in all these software. After creating projects and visualizing a Gantt chart, you can save it in PDF, PNG, HTML, etc., formats. Apart from primary project creation and management features, you can also find collaboration features in some software. Through collaboration features, you can create teams of users and assign tasks and projects to them. Go through the list to know more about these software.

My Favorite Project Management Software With Gantt Chart For Windows:

GanttProjectĀ is my favorite software because it generates a PERT chart along with a Gantt chart using the project data. Plus, it also offers collaboration features.

You can also check out lists of best freeĀ Cloud Project Management,Ā Project Management, andĀ Gantt Chart software for Windows.

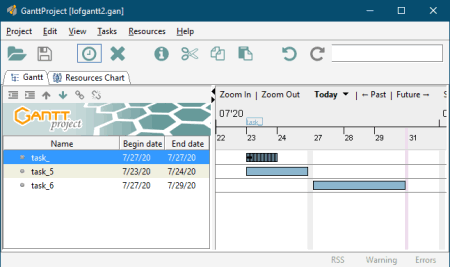

GanttProject

GanttProject is a free open source project management software with Gantt chart for Windows, Linux, and macOS. Through this software, you can easily track and manage project timelines. In each project, you can add multiple tasks and specify the timeslots of tasks over a Gantt chart. Plus, you can also schedule tasks with it. Apart from the Gantt chart, it also offers a PERT chart to visualize all the tasks and their time slots of different projects. Now, check out its main features.

Main Features:

  • Project: Using it, you can create a new project, add tasks, and specify their timeslots.
  • New Resources: Before creating any task, you need to specify all the resources like systems, employees, etc., along with their availability. All the added resources can be viewed on the Resourced chart.
  • Gantt Chart: In it, you can quickly add one or more tasks according to your project and then specify tasks properties like task name, task begin date, task end date, task priority, task progress, resources need for the task, etc. According to the task begin and end date, you can view horizontal bars over the Gantt chart indicating the timeslots of tasks.
  • PERT Chart: By going to the View tab, you can enable this chart to view all the tasks and their start/ end time in the form of PERT chart format.
  • Export: After creating a project and its Gantt chart, you can export it in PNG, JPEG, HTML, and PDF formats.

Additional Feature:

  • Collaboration: This software also allows you to collaborate with other users. To do that, you need your own cloud storage or WebDAV servers to establish a connection with other users.

Final Thoughts:

It is a simple and effective software to schedule, manage, and visualize projects using the Gantt chart.

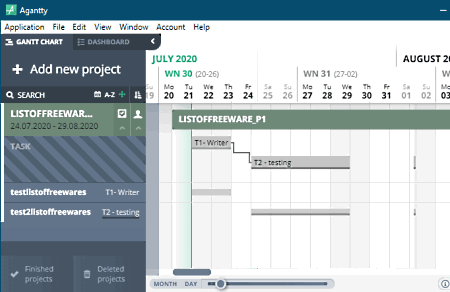

Agantty

Agantty is another free project management software with Gantt chart for Windows. Through this software, you can collaboratively work with multiple users to create and manage projects using a Gantt chart. It also lets you assign tasks to other users and employees. In it, you can create teams consisting of multiple users. Now, to create a Gantt chart showing the timeslots of tasks, you need to first create all the resources that you need to in a project. After that, you can add resources to tasks and then assign tasks to a team. Now, check out its main features.

Main Features:

  • Project: Use it to start a new project by providing the project name, project duration, and project description. If teams are already added then, you can select and assign the project to a team. You can also make a project private.
  • Tasks: Use this section to create a new task by providing the task description and time duration. It also lets you create and add the necessary resources that a team or individual need to complete a task.
  • Dashboard: On the dashboard, you can view all the projects and their due dates. From, here, you can also delete projects if you want.
  • Print GanttChart: Use it to print or save the final project Gant-chart highlighting the task time slots in the PDF format.

Additional Feature:

  • Invite: Use it to send invites to multiple users to join teams.

Final Thoughts:

It is another beautifully designed project management software with Gantt chart that you can use with multiple users.

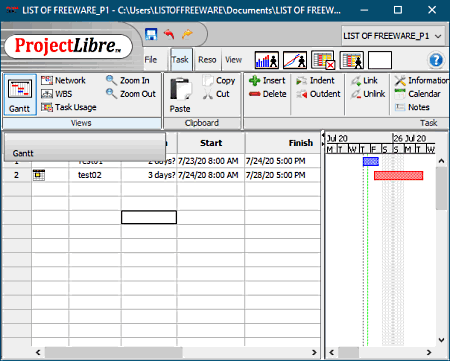

ProjectLibre

ProjectLibre is another free open source project management software with Gantt chart for Windows, macOS, BSD, Solaris, and Linux. Through this software, you can easily manage projects and tasks using the Gantt chart interface. In it, you can also directly import Microsoft Project files and start working on them. Along with the Gantt chart, it also offers Histogram to visualize different types of projects and tasks. After creating or editing the project, you can export it in XML and PDF formats. Now, check out its main features.

Main Features:

  • Project: Using it, you can create a new project by specifying the project name, project start date, project finish date, project manager, project cost, etc., parameters. Under the Projects section, you can view all the existing projects.
  • Resources: Use it to add all the resources, resource availability timings, and other associated information that you need in a project.
  • Tasks: Using it, you can add multiple tasks under a project by specifying the duration of tasks, name of resources that tasks needs, assigned to, etc., information.
  • Gantt Chart: After creating a project, you can view the time durations of added tasks over the Gantt chart. It also lets you change the duration of tasks directly from the Gantt chart interface.
  • View: It is a tab that offers various handy features to visualize projects such as Task Usage (to view the working time of tasks), Network (to view relationship between tasks), WBS, Histogram, and more.

Final Thoughts:

It is another capable open source project management software with Gantt chart that you can also use to import and manage Microsoft Project data.

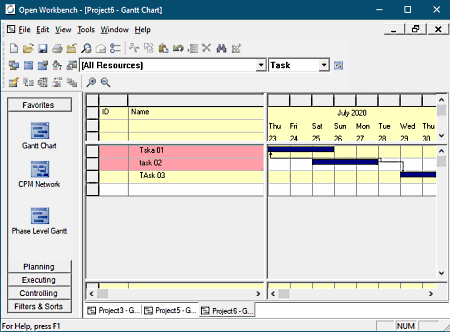

Open Workbench

Open Workbench is another free project management software with Gantt chart for Windows. Through this software, you can manage projects, schedule projects, create work breakdown structure, specify resource constraints, assign resources to tasks, and more. After creating and managing projects, you can visualize them over the Gantt chart. It also lets you export projects in XML file format. Let’s take a brief look at the main features of this software.

Main Features:

  • Planning: After creating a new project, you can use this section to create new resources for the project, create tasks, assign resources to tasks, specify dependencies of created resources, etc.
  • Executing: Using it, you can schedule tasks and projects by specifying the start and end date of tasks and projects. In addition to that, it also lets you monitor and edit the dependencies of tasks.
  • Controlling: Through this section, you can revise the schedule, perform variance analysis, and mark timeslots over the Gantt chart as unused availability.
  • Gantt Chart: You can find it in the favorite section over which you can view all the added schedules of tasks and projects that you can use to track their progress.

Additional Feature:

  • Filter and Sorts: This section offers many features through which you can filter out tasks and projects using custom-built filters. Plus, a sort feature to sort the projects according to their resources is also present in it.

Final Thoughts:

It is another decent project management software with Gantt chart that you can use to schedule projects and monitor projects timeline.

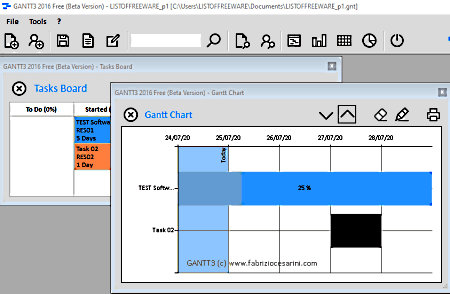

GANTT3

GANTT3 is the next free project management software with Gantt chart for Windows. With this use of this software, you can create projects, add tasks to projects, visualize task timeslots over the Gantt chart, manage resources, and manage various aspects of a project. Now, check out its main features.

Main Features:

  • Resources and Tasks: After creating a project, you can quickly add all the resources, resource properties, and available timings. Next, add new tasks to the project after specifying the task motive and add resources to it.
  • Gantt Chart: Immediately after adding tasks and resources to a project, move to the Gantt chart section to visualize the timeslots of various tasks that you can also change directly from the Gantt chart. It also lets you add unique colors to separate tasks to add to create a distinction between tasks.
  • Resourced Load Chart: Using this feature, you can view all the assigned and unassigned resources in the form of bar and pie chart graphs.
  • Dashboard: It helps you track all the completed, ongoing, and future projects along with project days and earnings.
  • Print: Over the Gantt chart, you get a print feature through which you can print or save the Gantt chart in PDF format.

Final Thoughts:

It is an intuitive and beautifully designed project management software with Gantt chart that anyone can use with ease.

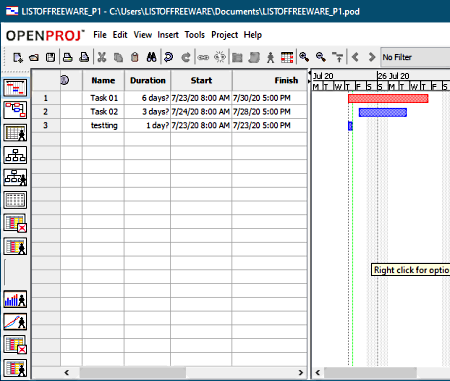

OpenProj

OpenProj is yet another free project management software with Gantt chart for Windows. Using it, you can easily create and schedule projects and track their schedule over the Gantt chart interface. Apart from the Gantt chart it also lets you create resource breakdown structure and work breakdown structures to visualize the workflow of a project. Similar to other software, it lets you add resources that you can assign to various tasks of different projects. Now, check out its main features.

Main Features:

  • Insert: After creating a project, you can use this feature to add multiple resources, resource properties, and resource availability timings. It also lets you add tasks to a project in which you can add the required resources.
  • Gantt Chart: Over the Gantt chart, you can view bars representing tasks and their time slots. You can also directly change the timings of tasks over the Gantt chart through the mouse.
  • Network: Using it, you can connect tasks that are going to use the same resources over different periods of time to show the workflow and resource shift from one task to another.
  • WBS and RBS: Through these sections, you can manually create resource breakdown and work breakdown structures.

Limitation:

  • In this free version of OpenProj, you cannot save the Gantt chart in the PDF format. To remove this restriction, you need to purchase its premium version.

Final Thoughts:

It is another decent project management software with Gantt chart that you can use to create and track projects and tasks.
