5 Best Free OBJ to DXF Converter Software for Windows
Here is a list of Best Free OBJ to DXF Converter Software for Windows. Using these free software, you can convert a 3D model present in OBJ file format (developed by Wavefront technologies) to AutoCAD DXF format (Drawing Exchange Format). You can also convert OBJ models to some more 3D file formats in these software, such as DWG, PLY, STL, DAE, 3DS, etc. These also let you convert 3D OBJ models to various image formats like PNG, JPG, GIF, BMP, TIFF, etc.
The advantage of these converters is that you can also modify the input OBJ model before converting it by using various model designing tools. These 3D tools include mesh design tools, insert various 2D and 3D shapes, text tool, rotate, flip, move, extrude tool, and more. These also contain a handy set of 3D model viewing tools which include pan, move, rotate, change rendering mode, change view, adjust camera settings, animation, etc. With these tools, you can easily view and analyze OBJ and other 3D models before starting the conversion.
In general, these are quite powerful and feature-rich software that can also be used for the conversion of OBJ to DXF and other file formats.
My Favorite Free OBJ to DXF Converter Software for Windows:
pCon.planner is one of my favorites as it is a nicely designed software that can be used to view, edit, create as well as convert 3D models.
pCon.planner is a great free 3D space planning software that can also be used as an OBJ to DXF converter. You just need to use its export feature in order to convert the format of OBJ model to DXF format. Other than DXF, you can convert OBJ to a number of file formats including DWG, 3DS, DAE, SKP, GLB, and more.
Additionally, it lets you modify the input OBJ model as you get a lot of design tools and options. You can use editing tools like arc, rectangle, polyline, layer filters, fill color, text, picture, scale, rotate, flip, move, extrude, hatch, edit texture, room elements, etc. In it, you can find a lot of view related tools to view and analyze a 3D model present in OBJ and other supported 3D file formats including zoom, render style, different view options, set up environment parameters, etc.

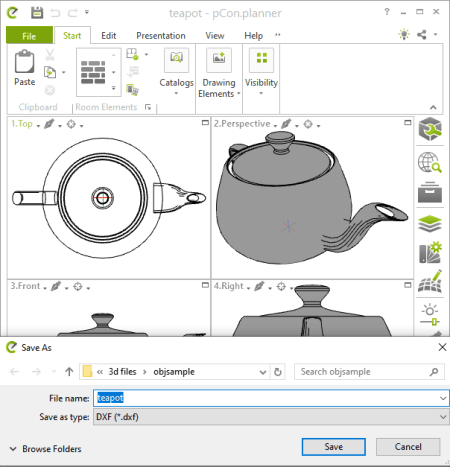

How to convert OBJ to DXF in pCon.planner:
- At first, import and open an OBJ model that you can view and edit as per your requirement.
- Now, from the File menu and use the Export > Export Geometry option. And in the output dialog window, set output format as DXF format and click the Save button to start the conversion process.
It is one of the best free software to convert OBJ to DXF and you can also choose to edit imported OBJ model prior to conversion.
Autodesk 123D Design
Autodesk 123D Design is a nice free OBJ to DXF converter for Windows. It is basically a 2D and 3D model design software that can also convert an OBJ model to DXF format. Besides DXF, you can also convert an OBJ file to DWG, STL, STEP, VRML, SVG, and a few more formats.
You can also modify input OBJ model using a variety of tools including add 3D shapes (box, cylinder, prism, cone, etc.), insert sketch (rectangle, arc, circle, etc.), extrude, sweep, revolve, loft, press pull, split face, add pattern, measure, etc. Plus, it also provides a good set of viewing tools to analyze source 3D models such as pan, orbit view, zoom, grid visibility, fit, etc.

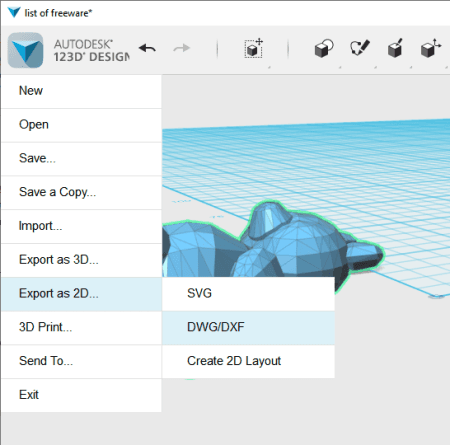

How to convert OBJ to DXF in Autodesk 123D Design:
- Firstly, use its Import > 3D Model option in order to browser and open an OBJ model in it.
- Now, you can simply view and modify source 3D model as per your requirement.
- Next, go to its Model icon and click the Export as 3D > DWG/ DXF option and select DXF as output format to convert OBJ to DXF.
It can be used for free for private use only.
It is a good 3D modeling software that you can use for the conversion of an OBJ model to DXF format.
MeshLab is a free open source OBJ to DXF converter software for Windows, Mac, and Linux. It is a standard 3D modeling software that comes with an additional conversion feature. You can simply open and view an OBJ model and then convert it to DXF or any other 3D file format, e.g., 3DS, PLY, DAE, X3D, etc.
Prior to conversion, it also lets you modify source OBJ model with the help of its 3D modeling tools. These tools include translate, rotate, scale, align tool, painting options, edit referencing, etc. It also comes with various handy filters to apply over input 3D model such as point set, sampling, texture, cleaning and repairing, remeshing, simplification and reconstruction, color creation and processing, quality measures and computations, etc.

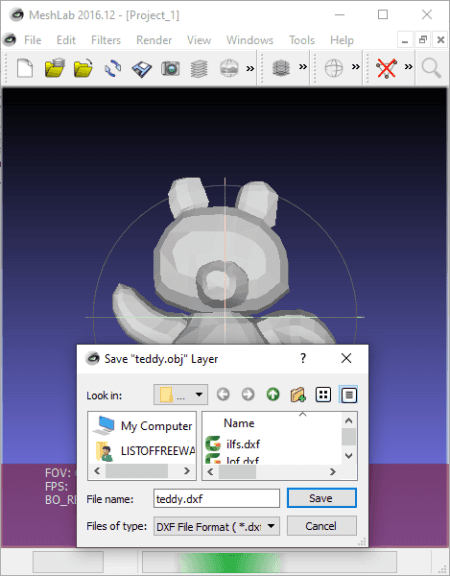

How to convert OBJ to DXF in MeshLab:
- Open an OBJ model in this software using File > Import Mesh option.
- View and edit imported OBJ model.’
- Convert OBJ to DXF using its File > Export Mesh As option.
It is simple and easy to use software that can be used to view and OBJ models and convert OBJ to DXF format.
JNetCAD is a free portable OBJ to DXF converter software for Windows. It is a Java based 3D model viewer that also provides an additional feature to convert the format of imported 3D model. You can also convert OBJ to various other file formats including BMP, GIF. JPG, PNG, EPS, PDF, etc.

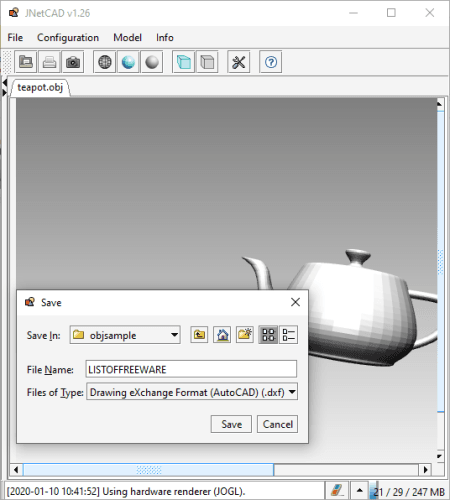

How to convert OBJ to DXF in JNetCAD:
- Launch this portable software and import an OBJ model to it.
- Now, you can view the model using available tools.
- Next, click the File > Save as function, set output file type as DXF format, and press the Save option.
It is a nice OBJ file viewer that also lets you convert OBJ to DXF format. Other than OBJ, you can also view 3D models present in STL, DXF, and 3DS formats.
NuGraf is yet another OBJ to DXF converter software for Windows. It lets you convert one or multiple OBJ models to DXF and other file formats including DWG, STL, PLY, SLDASM, IGES, DWF, 3DS, STP, etc. In case you want to view and analyze imported OBJ model before conversion, you can use its import and export functions.

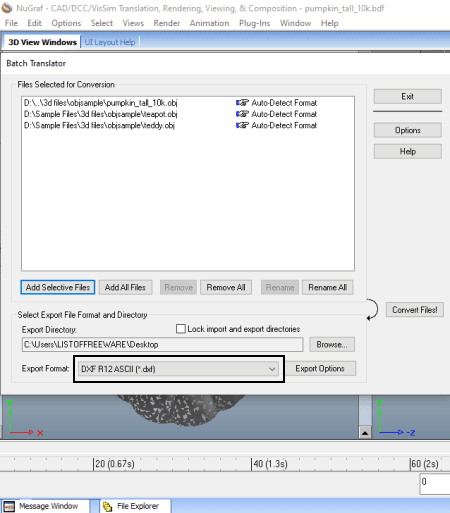

How to convert one or more OBJ to DXF in NuGraf:
- Firstly, open its Batch Convert tool from the File menu.
- Now, add one or multiple source OBJ files to this software that you want to convert.
- Next, select output format as DXF R12 and configure output parameters including output polygon, separate polygon into separate layers, output enables (polygons, 3D point set, polylines, etc.), line terminator type, etc.
- Finally, set output location and then hit the Convert Files! option to batch convert OBJ to DXF.
This free version of NuGraf doesn’t convert every 5th polygon of each object in output.
It is a decent batch OBJ to DXF converter to convert a set of OBJ models to DXF and various other 2D and 3D file formats. But, I would recommend you check its free version limitation before using it for the conversion.
