3 Best Free Open Source MIB Browser Software For Windows

Here is a list of best free open source MIB browser software for Windows. These open source MIB browsers are similar to standard non open-source MIB browsers that let you browse various entities of a computer network. However, unlike non-open source browsers, you can access and edit the source code of these MIB browsers. MIB or Management Information Base is a hierarchical virtual database of different entities in a computer network. This database is mainly used by SNMP or Simple Network Management Protocol in reference to a collection of management information like a network.

Through these browsers, you can explore internal MIB entities of a local network or external MIB files. The primary exploring feature of these browsers is there called MIB tree view. Using MIB tree, you can explore MIB entities to view data like Object Identifiers (Oid), Node Name, SMI Type, Module Version, etc. In some browsers, you can even manually edit MIB files to make required changes to the network entity’s information.

Apart from exploring MIB entities, you can also use it to query SNMP agents through commands like Get, Walk, Set, etc. Other useful features that you get in these browsers are MIB Entities Graphs, Log, Bookmarks, and Search. Go through the list to know more about these open source MIB browsers.

My Favorite Open Source MIB Browser Software For Windows:

SnmpB is my favorite software because it offers all the essential MIB file browsing features. Plus, it also lets you generate graphs and make SNMP queries for SNMP devices.

You can also check out lists of best free MIB BrowserOpen Source Browser, and Open Source Broadcasting software for Windows.

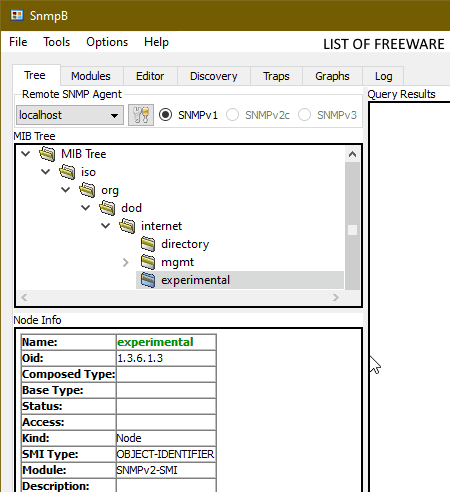

SnmpB

SnmpB is a free open source MIB browser software for Windows, macOS. Linux, and BSD. Through this software, you can browse, edit, load, and add new MIB files. It can also be used to make queries to SNMP agents. Other handy features such as MIB elements discover, MIB elements editor, trap events, etc., are also present in it. Now, check out the main features of this MIB browser.

Main Features:

  • Tree: It is the main browsing feature of this software. Using it, you can expand and explore MIB tree and find out detailed information about each node of the MIB tree. Some of the node information that it shows are Oid, Node Name, SMI Type, Module Version, Status, Base Type, and more.
  • MIB Editor: This feature lets you load and manually edit MIB file elements and data. It also lets you add a new line of code in it and check the MIB elements verification information in its Verification log.
  • Modules: It shows all the available and loaded MIB modules in separate sections. From here, you can select and send any available module to the loaded module section. Some of the MIB modules present in it are AGGREGATE-MIB, ALARM-MIB, APPC-MIB, APPLICATION-MIB, IF-MIB, and SNMP-FRAMEWORK-MIB.
  • Discover: Through this feature, you can discover all the SNMP agents falls between a user-defined address range. Along with SNMP agents, it also shows information associated with them such as Address Port, Protocol, Up Time, System Location, etc.
  • Graphs: Using it, you can plot graphs corresponding to the nodes of the MIB tree.

Additional Feature:

  • LOG: It keeps track of all the errors, warning, and events occurred during the usage of this software

Final Thoughts:

It is one of the best free open source MIB browser because it lets you browse internal MIB data along with external MIB files.

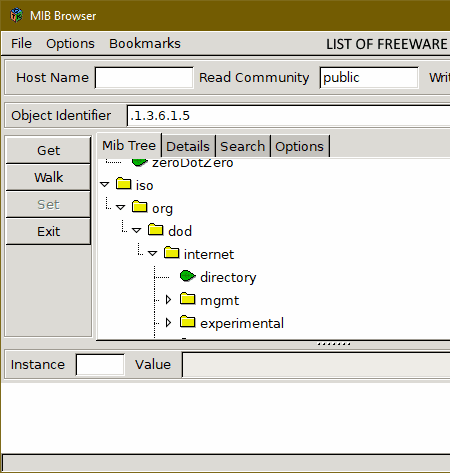

MIB Browser

MIB Browser is another free open source MIB browser software for Windows, BSD, and Linux. This browser is based on GTK+ and Net-SNMP. Just like Net-SNMP, it also supports IPv4, IPv6, IPX, AAL5, Unix domain sockets, and other transports. Through this MIB browser, you can browse internal SNMP and MIB data along with external MIB file data. Plus, it also supports various SNMP supported operations to make queries to SNMP devices. Let’s take a look at the main features of this MIB browser.

Main Features:

  • Mib Tree: It shows the SNMP directories and device files in the tree structure format. By expanding a folder and selecting an SNMP device file, you can view its details in the Details tab.
  • Details Tab: In it, you can view details about a selected node or SNMP device file such as Label, Type, Access Type, Status, Description, and more.
  • SNMP Supported Operations: This browser also lets you make queries using SNMP operations namely Get, Walk, and Set.
  • Search: It lets you find MIB Labels and OID of a MIB file.
  • Bookmarks: Through this feature, you can save important results obtained by SNMP queries.

Final Thoughts:

It is another good open source MIB browser through which you can browse MIB data.

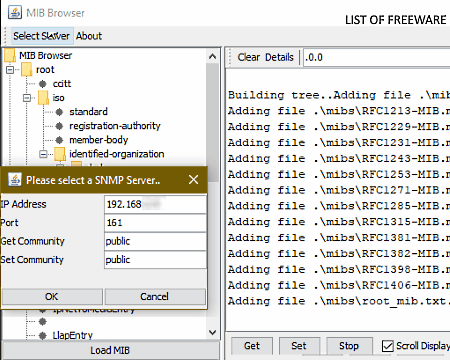

JMIB Browser

JMIB Browser is yet another free open source MIB browser software for Windows. It is a Java-based MIB browser that requires a system with Java to run. Through this browser, you can connect to different SNMP servers by providing their IP address and Port number. After the connection, you can access and view all its data, root directories, internet directories, textual conventions, etc. In addition to that, you can also make GET and SET queries for SNMP enabled devices. Now, check out the main features of this open source MIB browser.

Main Features:

  • MIB Browser: In this section, you can view all the SNMP directories and files of an SNMP server or external MIB files. By selecting a file, you can view its internal data on the right side of its interface. In addition to that, you can query an SNMP enabled device or file using GET and SET SNMP commands.
  • Load MIB: Use it to load an external MIB file to this MIB browser.
  • Select Server: It allows you to connect to an open SNMP server bu using its IP Address and Port Number.

Final Thoughts:

It is a simple and straightforward open-source MIB browser through which you can browse MIB data and make queries for SNMP devices.
